PA503XE

4,000 Lumens XGA Business Projector

• 22,000:1 contrast ratio
• SuperColor™ technology
• 5 colour modes
• Auto power off
• Vertical keystone
•

SPECIFICATIONS

• SPECIFICATION

  Projection system: 0.55" XGA
  Native Resolution: 1024x768
  DC type: DC3
  Brightness: 4,000 ANSI Lumens
  Contrast Ratio with SuperEco mode: 22000:1
  Display Color: 1.07 Billion Colors
  Light Source: Lamp
  Light source life (Nor/SuperEco): 5000/15000
  Lamp Watt: 190W
  Lens: F=2.56-2.68, f=22-24.1 mm
  Projection Offset: 120%+/-5%
  Throw Ratio: 1.96~2.15
  Image size: 30" - 300"
  Throw Distance: 1.19m-13.11m(100" @3.98m)
  Keystone: ±40° (Vertical)
  Optical Zoom: 1.1x
  Audible Noise (Eco): 27dB
  Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility: NTSC, PAL, SECAM
  Horizontal Frequency: 15K~102KHz
  Vertical Scan Rate: 23~120Hz

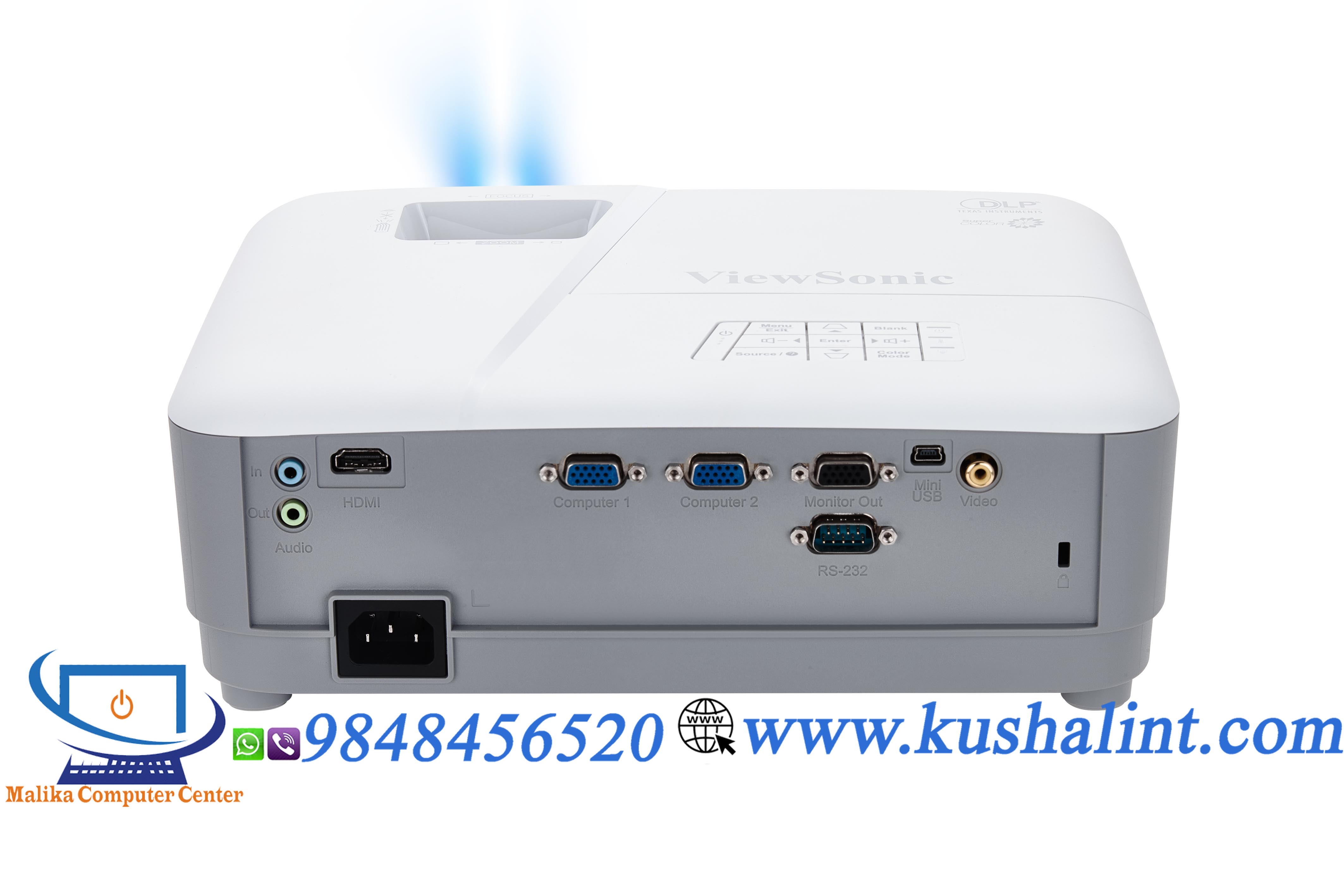

• Input

  Computer in (share with component): 2
  Composite: 1
  Audio-in (3.5mm): 1
  HDMI: 1 (Back)

• Output

  Monitor out: 1
  Audio out (3.5mm): 1
  Speaker: 2W

• Control

  RS232: 1
  USB type mini B (Services): 1

• Others

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
  Power Consumption: Normal: 260W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 2.2kg
  Dimensions (WxDxH) w/adjustment foot: 294x218x110mm
  Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese

• Standard Accessory

  Power Cord: 1
  VGA cable: 1
  Remote Control: 1
  QSG & CD: QSG: 1 / CD: NA

• Optional Accessory

  Air Filter: RSPL
